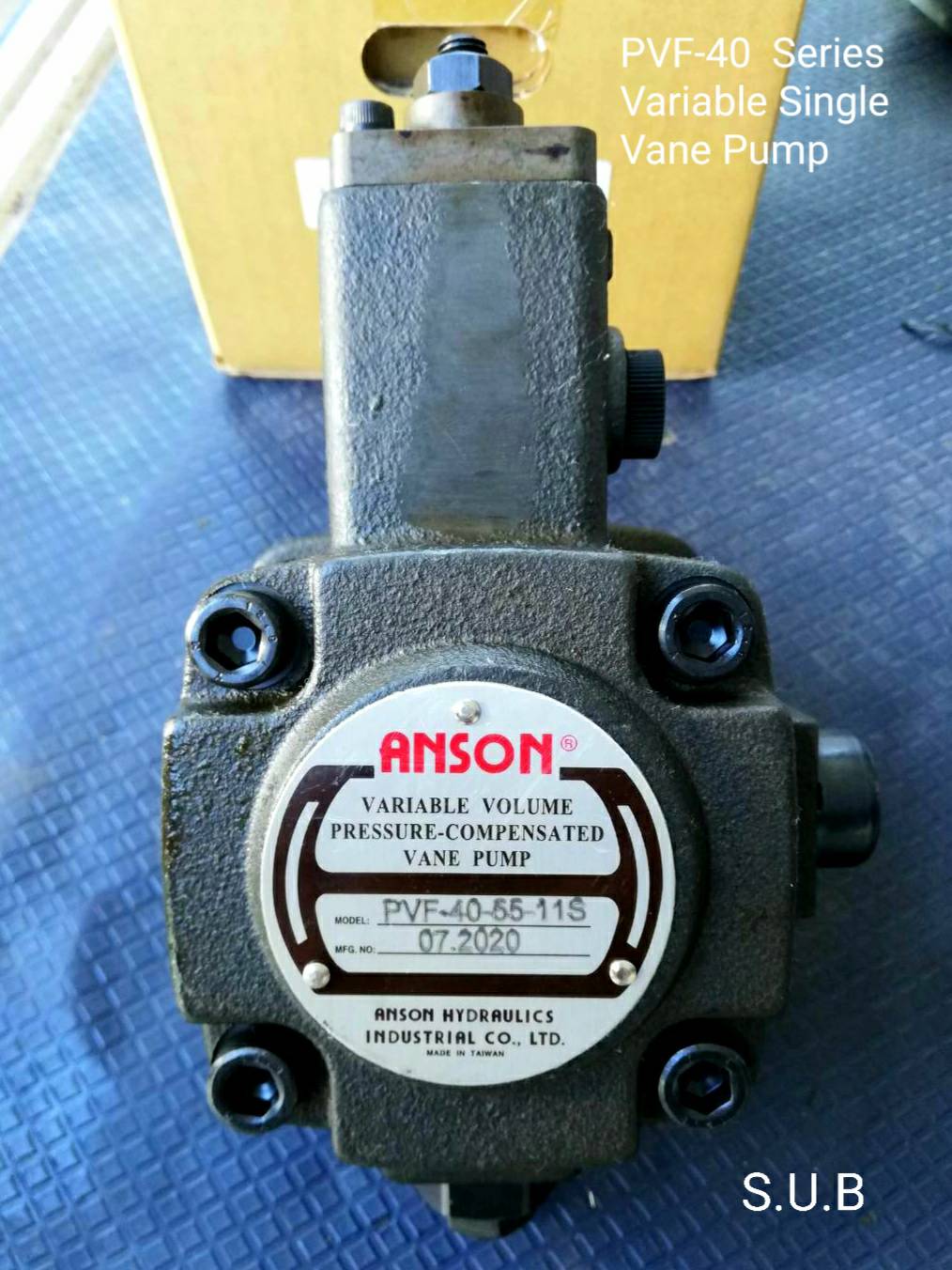

PVF-40 Series (Variable Vane Pump) ปั๊มใบพัดแบบปรับแรงดันได้ PVF-40-20, PVF-40-35, PVF-40-55, PVF-40-70 | Single Pumps

PVF-40 Series (Code)
  PVF-40-20-10, PVF-40-20-10S   (8-20 bar)
  PVF-40-35-10, PVF-40-35-10S   (15-35 bar)
  PVF-40-55-10, PVF-40-55-10S   (30-55 bar)
  PVF-40-70-10, PVF-40-70-10S   (50-70 bar)
  PVF-40-*-11, PVF-40-*-11S

PVF-40 Series (Spec)
  Flow Rate : 40 LPM @1800RPM (22cc/rev)
  Minimum : 800 RPM
  Maximum : 1800 RPM
  Pressure Range : 8-70 BAR
  Flange Mounting Type

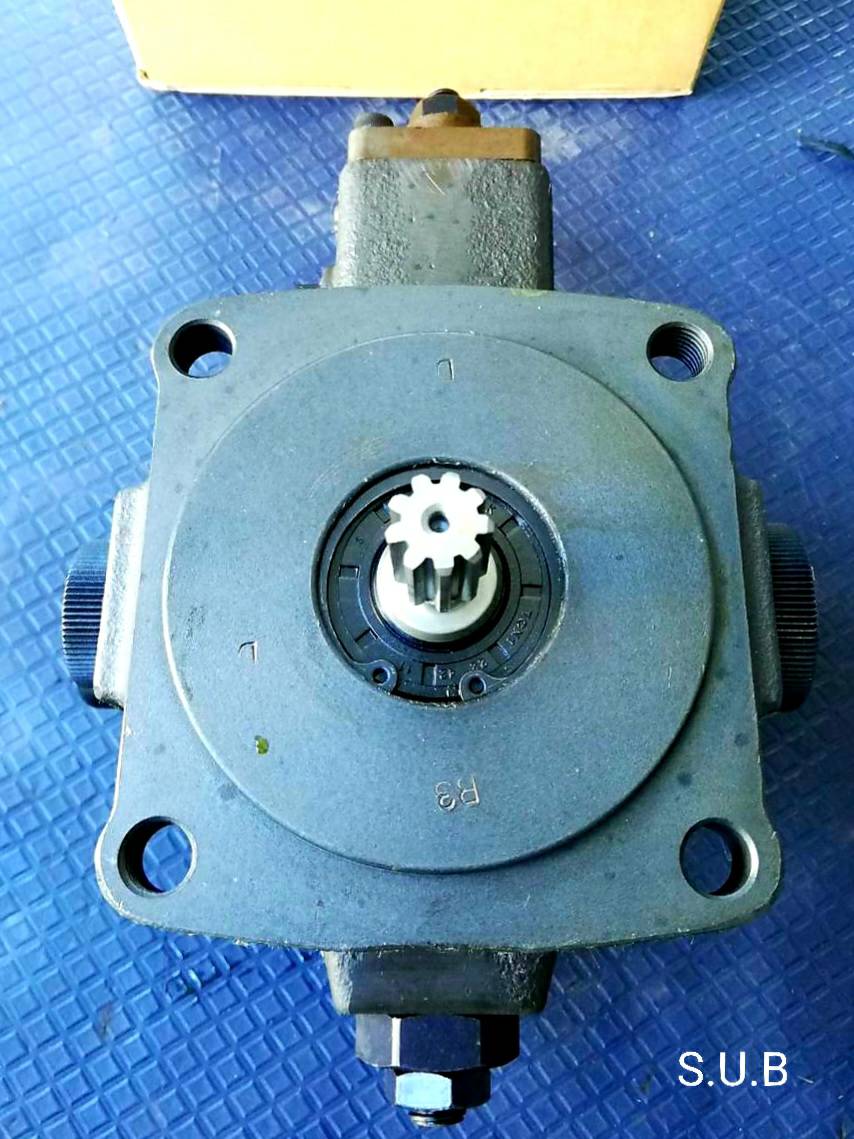

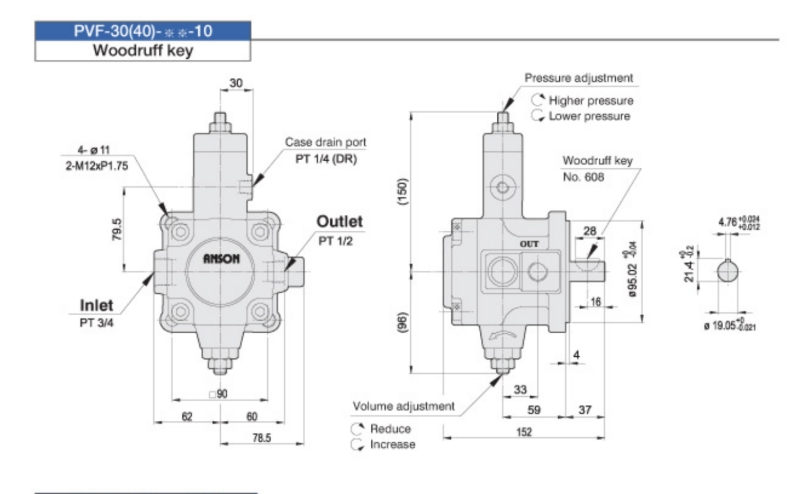

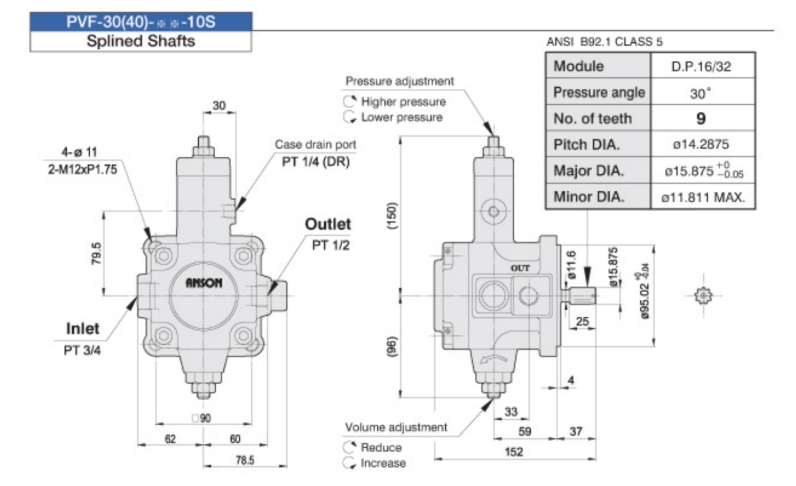

  Spline Shaft (S) / Woodruff Shaft (None S)


Contact :
   CHARIN
   Tel & Line : 0992529629


.....
Post Tags: Hystar PVF-40, Anson PVF-40, Variable Vane Pump, Single Vane Pump, Anson Vane Pumps, Hystar Vane Pumps
